I am not a professional duck blind builder. I am not a "craftsman" although I am an ambitious DIY guy. I do not have endless money in the bank to build professional duck blinds and have them installed in my various waterfowl locations. But what I do have is a pile of wood, a couple extra crates, and a desire to build a duck blind that is functional. I want to have a better blind, better cover, and a better chance at shooting some ducks before they blow my cover. So this is a DIY guide to making something that works. The steps are very general. It will require you to improvise and make something that works for you. If you are a hunter, I trust that you can make something that is functional.









Step #1 - Layout The Materials











We had a lot of extra old barn wood to start this duck blind building endeavor. If you don't have a lot of extra wood lying around, you would have to purchase something equivalent, but you may want to do a little more planning so you don't break the bank. Here was our must-have list: - (2) Two wood crates - (4) Four ply-wood sheets - Several 2x4's and 2x6's - A bunch of 2 1/2" screws - Chicken wire - (3) 3 Hinges - Spray Paint - Skill saw, Electric Screw Driver - Ability to build things with very general directions and not a specific cut list









 Duck Blind Preparation










STEP #2 - Layout the base











We put the two crates next to each other and took two of the longer 2x4's and screwed them to the outside of the crates. This created a fairly sturdy base that would keep the floor out of the water a little bit better.









 Duck Blind Grates

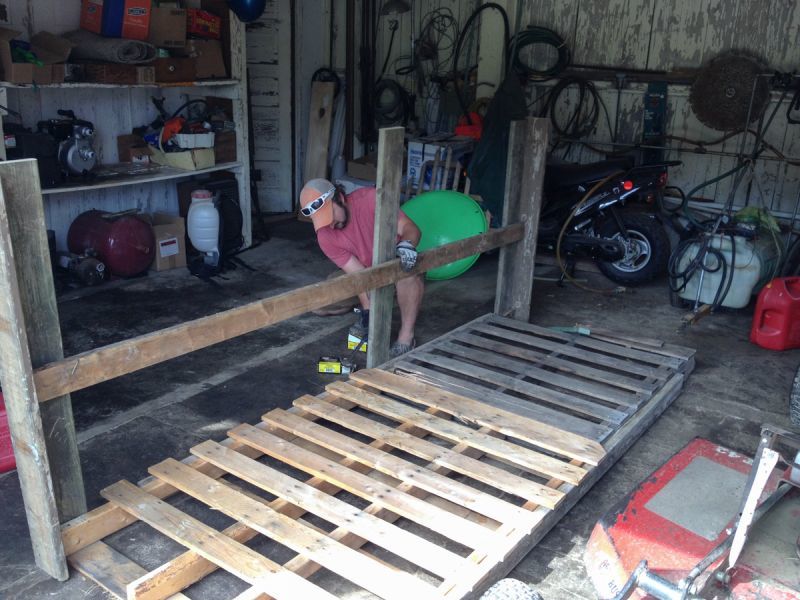

STEP #3 - Build the backrest











We took the 2x6's and cut them to an equal length for the back rest. Cut them as high as you want the blind to be, depending on how much cover you are hunting in and how much room you want to shoot behind you. Screw on two of the 2x6's on each of the corners and one in the middle. We took a long 2x4 and screwed it across the 2x6's for the seat support.









 Duck Blind Back Posts

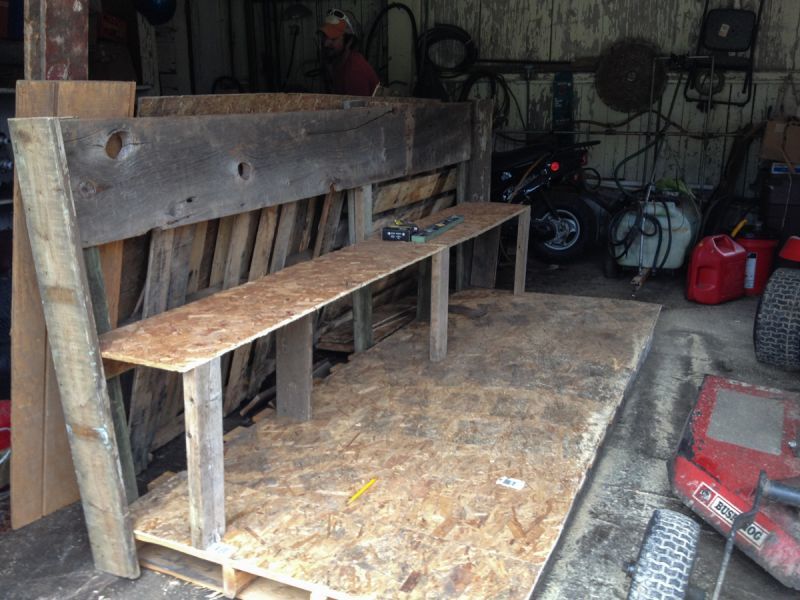

STEP #4 - Attach the seat and floor











We cut the plywood to fit on top of the two crates and screwed it down to the crates. We then took two extra pieces of plywood and cut them to span the length of the duck blind for the seat. The plywood sits on top of the back brace and also on 3 supports that we cut for the front of the bench. Again, you'll have to eyeball the height for a proper sitting height. (One of our cuts wasn't the straightest so the supports leaned a bit..... again DIY, not professional). We also took a 2x12 and screwed it on as the backrest.









 Duck Blind Bench Seat










STEP #5 - Build the Front Supports











Just as we built the back supports out of 2x6's, we did the same for the front supports. We also attached another 2x4 to span the 3 supports for stability. We put a 2x6 along the top of the 3 front posts which would be a rest for the swing-away shoot fence. We also fitted some more plywood to the back of the blind and on the far side of the duck blind. This provided stability. It's starting to look like a duck blind!









 Duck Blind Front Posts

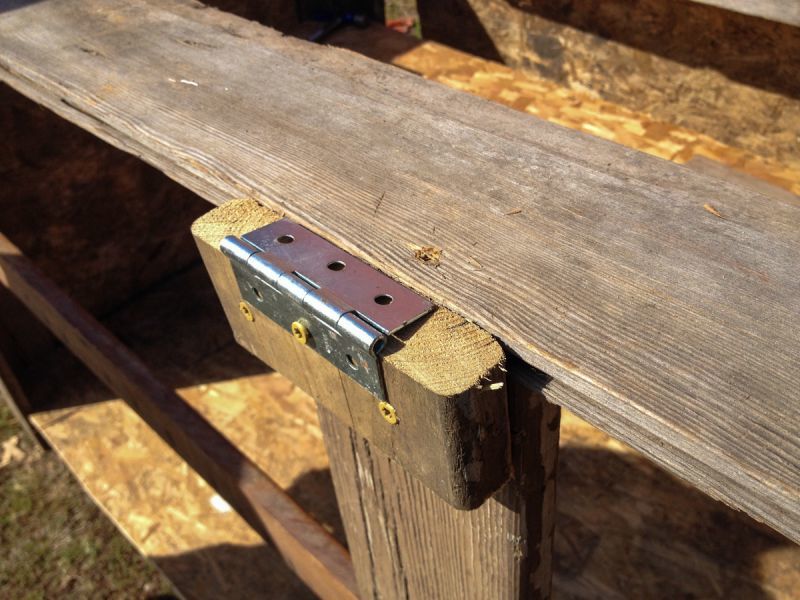

STEP #6 - Attach the swing-away hinges











We cut 3 little blocks and attached them to the front post. On the blocks, we put hinges that would be used for the swing-away fence.









 Duck Blind Hinges










STEP #7 - Build the swing-away fence and attach chicken wire











We cut 3 more equal size lengths of the 2x6's and screwed them onto the hinges. At the top of the 3 pieces we spanned a longer piece that helped stabilize the top. We added 3 more little blocks underneath the swing-away fence to keep the fence on an angle slanting up. The fence swings away, but we actually shoot over the fence and use the swing-away action for making more space when getting in and out of the blind. I'm sure you may actually want to use the swing-away fence for shooting, but for some people (like us), it can be another thing to mess with when you're trying to shoot ducks! Also, we wrapped the who blind in chicken wire and stapled it to the wood. It gives us something to thread all of the camo through.









 Duck Blind Swing Away Fence

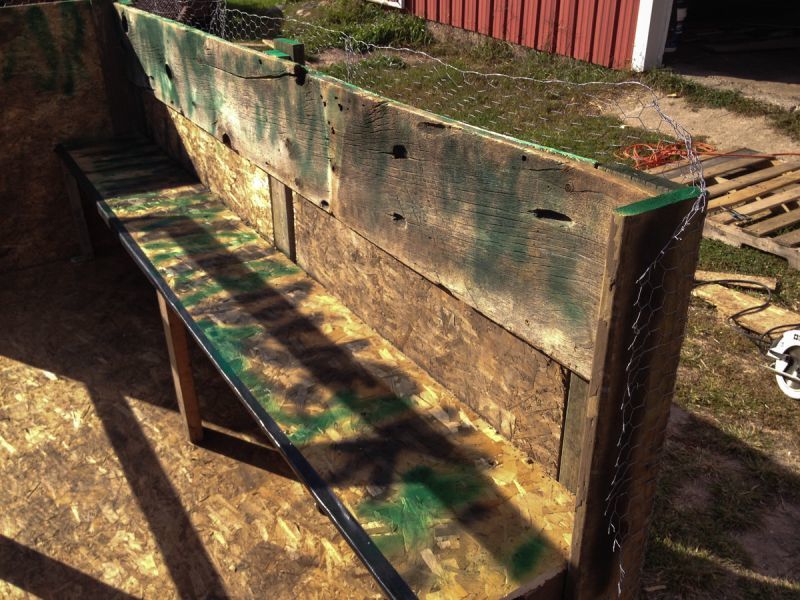

STEP #8 - Spray Paint











We took some spray paint and made the thing look more like a duck blind. We didn't have a ton, so it might be worth improving in the future. I also took some black electrical tape and taped up the end of the bench. I don't want plywood fragments cutting holes in my waders!









 Duck Blind Camo Seat










STEP #9 - Add Camo Grass











Josh (pictured below) bought some marsh grass from Gander Mountain. Here is the link: http://www.gandermountain.com/modperl/product/details.cgi?i=727614. This was a little cheaper than some of the more name-brand stuff, but hey it's duck blind camo. Ducks don't care. We zip-tied it to the chicken wire, and draped it over the shooting fence. We left some room on the bottom because the grass didn't reach all the way and we are able to fill in empty space with some brush from our hunting location.









 Duck Blind Fast Grass

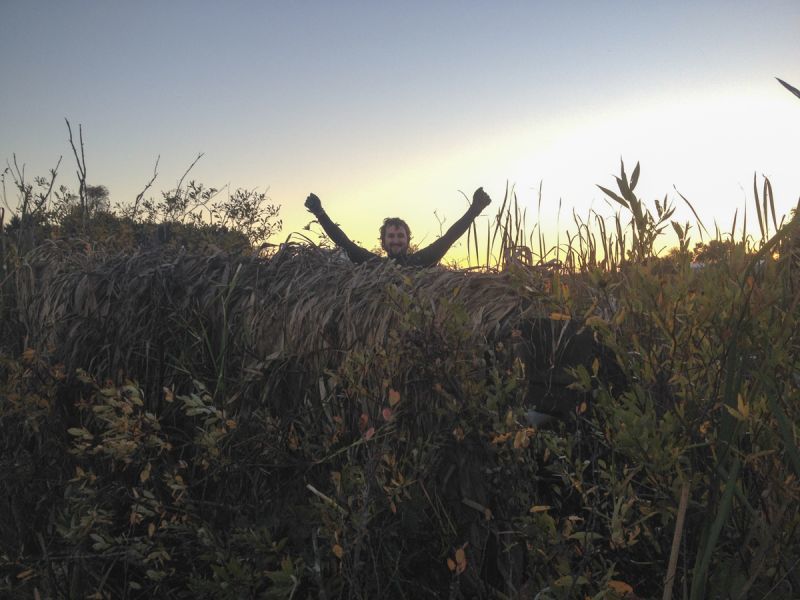

STEP #10 - Bring it to your spot and HUNT!











This is the best step. I will warn you though, the finished product was pretty heavy. If I were to do it again, I would have built it closer to where it was going to end up. We had to put the thing in a boat and haul it out to the middle of a marsh. It was quite an experience, but hey, when you want something, you make it happen. Here's Josh below. The victorious hunters built their blind. It looks pretty good in the marsh. You can hardly see where it begins and ends!









 Duck Blind Complete










This is me - ready to shoot some quackers.









 Duck Blind Hunting










This is Josh. Face-painted, and ready to hunt!









 Duck Blind Duck










Good luck hunting and good luck with the duck blinds!
